Surface Mate X

A docking station redesign aimed at three problems: its appearance, heating, and a screen that couldn’t tilt. It adds a cooling fan and a tilt mechanism.

Project stage
Engineering design
Work type
Portfolio study

Three fixes in one dock

  • Poster listing the three main problems the redesign solves.

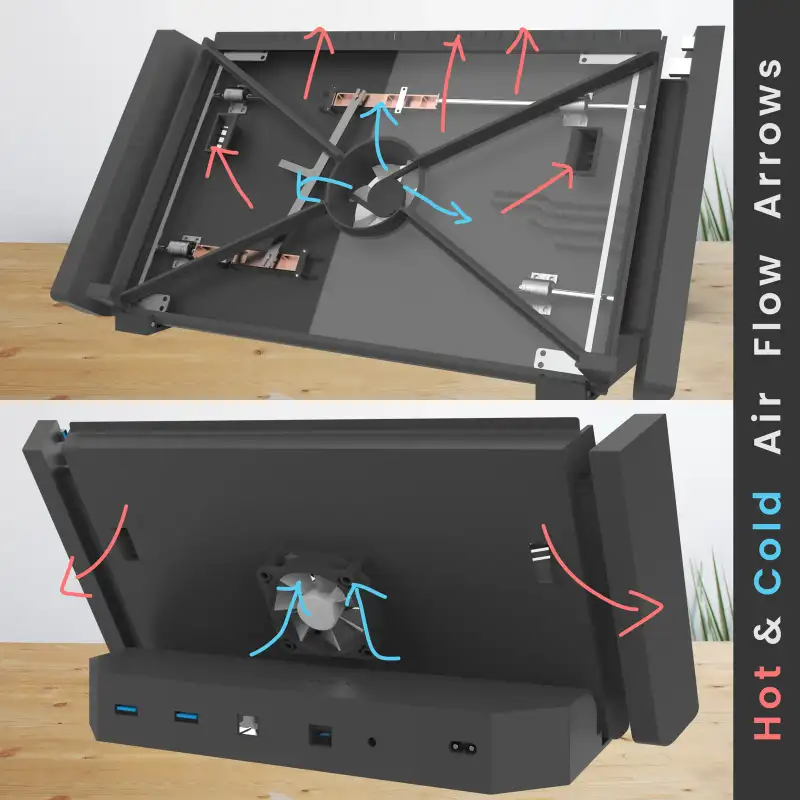

  • Render with arrows showing hot and cold air flow through the dock.

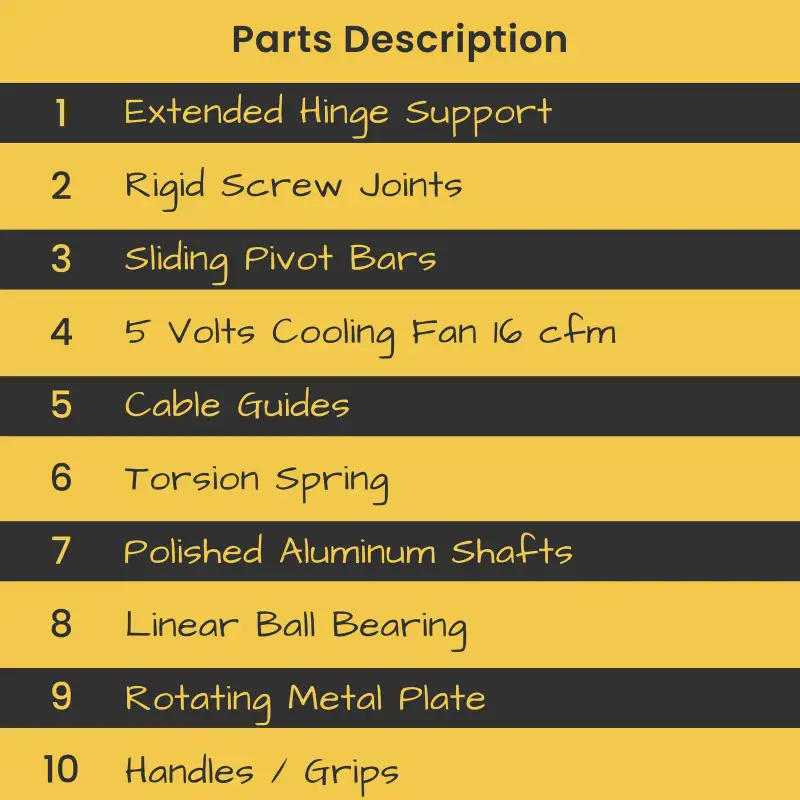

  • Parts list for the docking station’s mechanism.

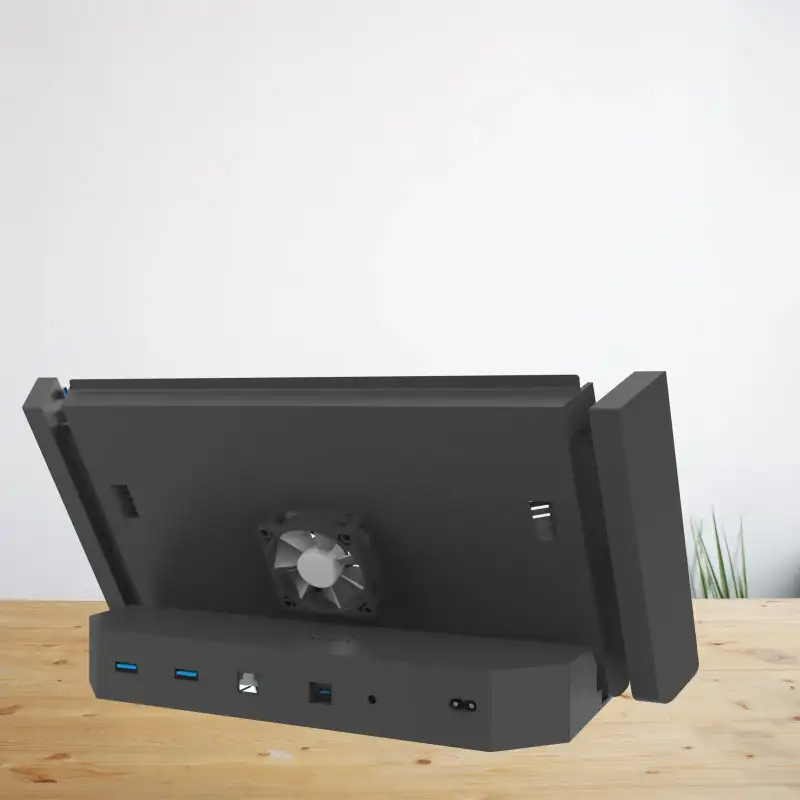

  • Render of the docking station with a tablet, from the side.

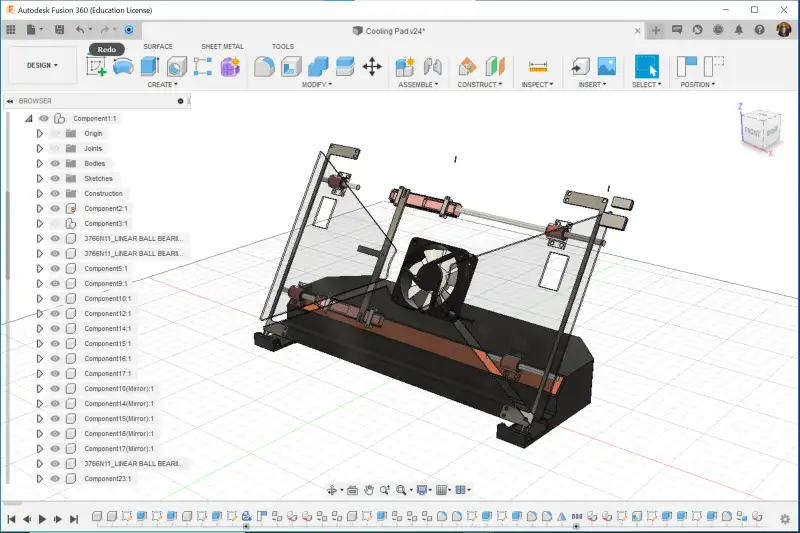

  • CAD model of the docking station’s tilt mechanism in a design window.

The redesign takes on three problems with the original dock: how it looks, how hot it runs, and a screen that couldn’t tilt.

A 5 V cooling fan moves air through the base, guided by the flow paths shown in the renders. The screen tilts on sliding pivot bars, a torsion spring, polished aluminium shafts and linear ball bearings, and cable guides keep the wiring tidy.
