EKKO Clinic

Clinical-device housings and handheld wands for EKKO’s speech-therapy product: two enclosure versions, assembly details and parts designed for FDM printing.

Project stage
Manufactured parts
Work type
Client project
Client
EKKO

The device

EKKO asked us to develop the housings and handheld wands for its speech-therapy product. This case study covers the product-design and manufacturing work, rather than clinical effectiveness.

EKKO asked us for the clinical version of their flagship product, and we took it from design to manufacturing. Each design choice had to hold up from a logical and an ergonomic point of view, for the therapist and for the child.

Clinic V1

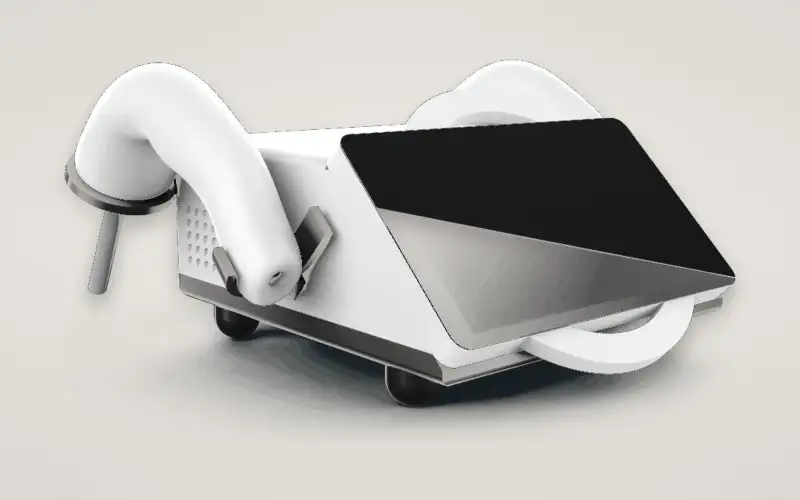

  • Render of EKKO Clinic V1: an angled screen on a low white base, with a curved wand docked on each side.

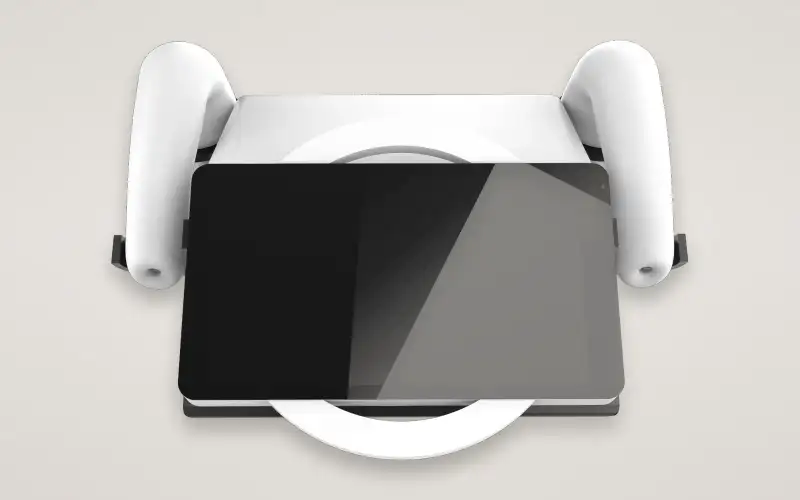

  • EKKO Clinic V1 from the front, with the screen between the two docked wands.

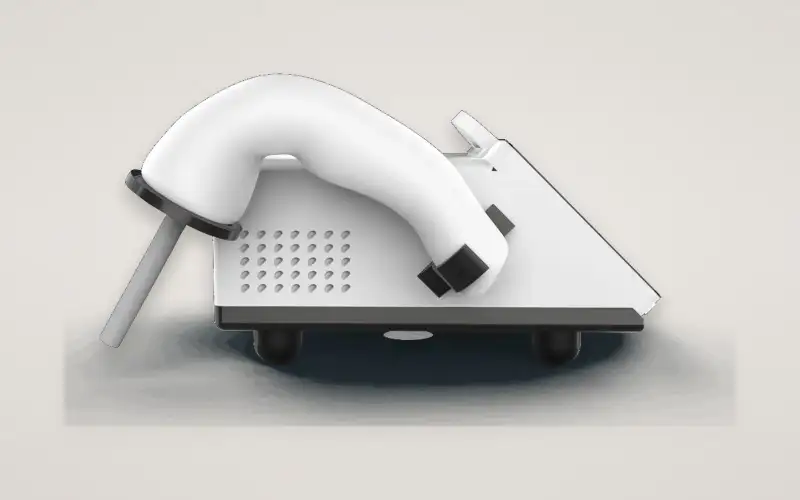

  • EKKO Clinic V1 from the side, showing a docked wand, its probe and the speaker grille.

The first clinical version sets an angled screen on a low base, between two docked wands.

Clinic V2

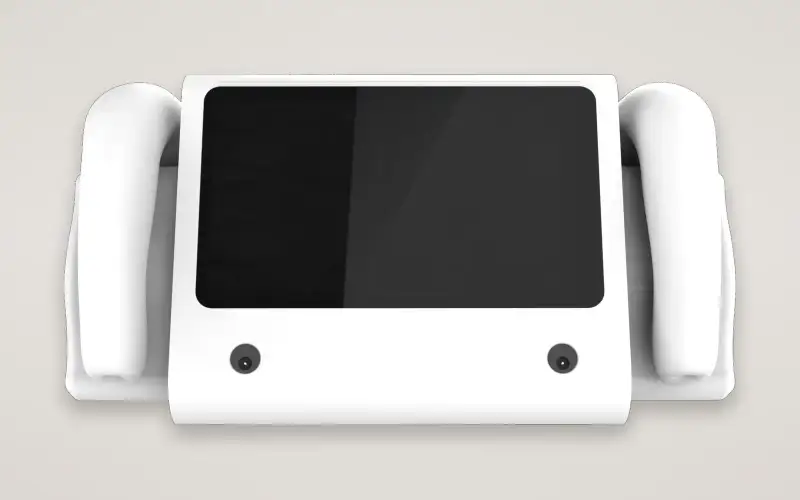

  • EKKO Clinic V2 from the front: the screen and two buttons, with a wand docked on each side.

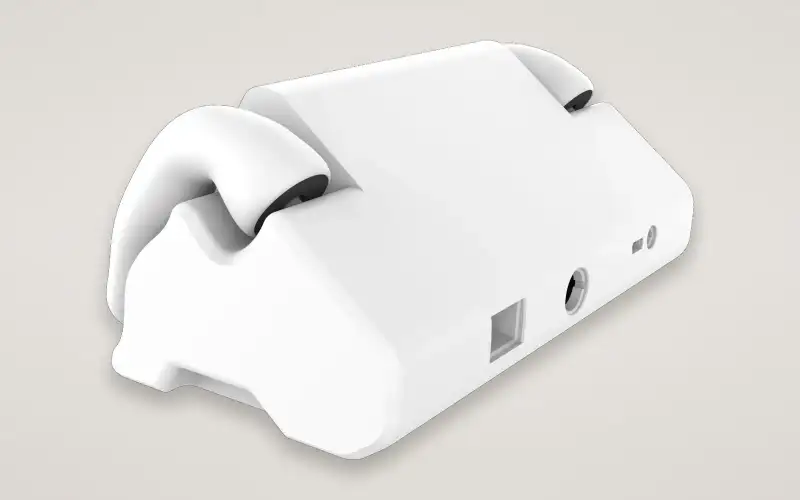

  • EKKO Clinic V2 from the back, showing its ports and the docked wands.

When EKKO asked for an additional version of the Clinic, we turned it around quickly. V2 brings the screen, two buttons and both wand docks into one rounded body, with the ports at the back.

EKKO Wand

  • Exploded render of the EKKO Wand: the curved housing, vibration motor, motor bumper, front cover and frequency transfer probe.

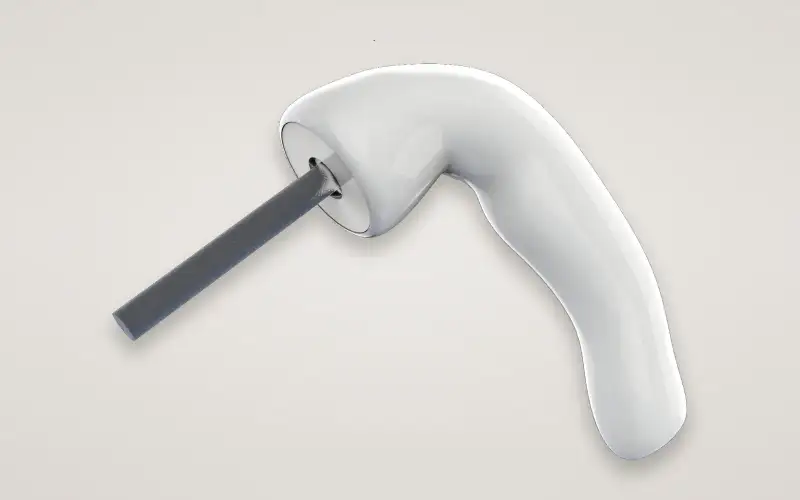

  • Render of the assembled EKKO Wand.

The wand carries the vibration. A motor sits in a bumper inside the curved housing, and a front cover holds the frequency transfer probe that passes the vibration on.

The handle is shaped for a comfortable grip, the parts go together easily, and every part is optimised for FDM printing.
